# (Removed local-repo sys.path hack; not needed on Colab.)

# Report installed package versions (no external helper script needed on Colab).
import importlib.metadata as importlib_metadata

for pkg in ['numpy', 'scipy', 'matplotlib', 'scikit-learn', 'pandas', 'xgboost']:
    try:
        print(f'{pkg}: {importlib_metadata.version(pkg)}')
    except importlib_metadata.PackageNotFoundError:
        print(f'{pkg}: NOT INSTALLED')

from IPython.display import Image
%matplotlib inline

import os
os.makedirs('figures', exist_ok=True)  # so plt.savefig(...) calls below don't fail on Colab

# Figures referenced by this notebook live in the companion GitHub repo;
# fetch them by URL since a fresh Colab runtime won't have the local 'figures/' folder populated.
FIGURES_BASE_URL = (
    'https://raw.githubusercontent.com/brianjalaian/CAP6606_ML_ISR/'
    'main/modules/07_ensemble_methods/figures'
)

Image(url=f'{FIGURES_BASE_URL}/07_01.png', width=500)

Image(url=f'{FIGURES_BASE_URL}/07_02.png', width=500)

from scipy.special import comb
import math


def ensemble_error(n_classifier, error):
    k_start = int(math.ceil(n_classifier / 2.))
    probs = [comb(n_classifier, k) * error**k * (1-error)**(n_classifier - k)
             for k in range(k_start, n_classifier + 1)]
    return sum(probs)

ensemble_error(n_classifier=11, error=0.25)

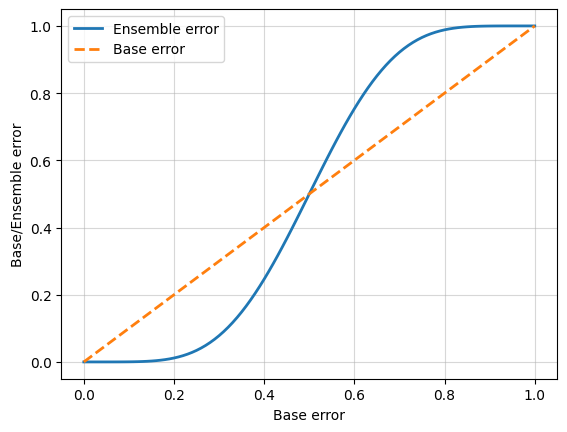

import numpy as np


error_range = np.arange(0.0, 1.01, 0.01)
ens_errors = [ensemble_error(n_classifier=11, error=error)
              for error in error_range]

import matplotlib.pyplot as plt


plt.plot(error_range,
         ens_errors,
         label='Ensemble error',
         linewidth=2)

plt.plot(error_range,
         error_range,
         linestyle='--',
         label='Base error',
         linewidth=2)

plt.xlabel('Base error')
plt.ylabel('Base/Ensemble error')
plt.legend(loc='upper left')
plt.grid(alpha=0.5)
#plt.savefig('figures/07_03.png', dpi=300)
plt.show()

import numpy as np

np.argmax(np.bincount([0, 0, 1],
                      weights=[0.2, 0.2, 0.6]))

ex = np.array([[0.9, 0.1],
               [0.8, 0.2],
               [0.4, 0.6]])

p = np.average(ex,
               axis=0,
               weights=[0.2, 0.2, 0.6])
p

np.argmax(p)

from sklearn.base import BaseEstimator
from sklearn.base import ClassifierMixin
from sklearn.preprocessing import LabelEncoder
from sklearn.base import clone
from sklearn.pipeline import _name_estimators
import numpy as np
import operator


class MajorityVoteClassifier(BaseEstimator,
                             ClassifierMixin):
    """ A majority vote ensemble classifier

    Parameters
    ----------
    classifiers : array-like, shape = [n_classifiers]
      Different classifiers for the ensemble

    vote : str, {'classlabel', 'probability'} (default='classlabel')
      If 'classlabel' the prediction is based on the argmax of
        class labels. Else if 'probability', the argmax of
        the sum of probabilities is used to predict the class label
        (recommended for calibrated classifiers).

    weights : array-like, shape = [n_classifiers], optional (default=None)
      If a list of `int` or `float` values are provided, the classifiers
      are weighted by importance; Uses uniform weights if `weights=None`.

    """
    def __init__(self, classifiers, vote='classlabel', weights=None):

        self.classifiers = classifiers
        self.named_classifiers = {key: value for key, value
                                  in _name_estimators(classifiers)}
        self.vote = vote
        self.weights = weights

    def fit(self, X, y):
        """ Fit classifiers.

        Parameters
        ----------
        X : {array-like, sparse matrix}, shape = [n_examples, n_features]
            Matrix of training examples.

        y : array-like, shape = [n_examples]
            Vector of target class labels.

        Returns
        -------
        self : object

        """
        if self.vote not in ('probability', 'classlabel'):
            raise ValueError(f"vote must be 'probability' or 'classlabel'"
                             f"; got (vote={self.vote})")

        if self.weights and len(self.weights) != len(self.classifiers):
            raise ValueError(f'Number of classifiers and weights must be equal'
                             f'; got {len(self.weights)} weights,'
                             f' {len(self.classifiers)} classifiers')

        # Use LabelEncoder to ensure class labels start with 0, which
        # is important for np.argmax call in self.predict
        self.lablenc_ = LabelEncoder()
        self.lablenc_.fit(y)
        self.classes_ = self.lablenc_.classes_
        self.classifiers_ = []
        for clf in self.classifiers:
            fitted_clf = clone(clf).fit(X, self.lablenc_.transform(y))
            self.classifiers_.append(fitted_clf)
        return self

    def predict(self, X):
        """ Predict class labels for X.

        Parameters
        ----------
        X : {array-like, sparse matrix}, shape = [n_examples, n_features]
            Matrix of training examples.

        Returns
        ----------
        maj_vote : array-like, shape = [n_examples]
            Predicted class labels.

        """
        if self.vote == 'probability':
            maj_vote = np.argmax(self.predict_proba(X), axis=1)
        else:  # 'classlabel' vote

            #  Collect results from clf.predict calls
            predictions = np.asarray([clf.predict(X)
                                      for clf in self.classifiers_]).T

            maj_vote = np.apply_along_axis(
                                      lambda x:
                                      np.argmax(np.bincount(x,
                                                weights=self.weights)),
                                      axis=1,
                                      arr=predictions)
        maj_vote = self.lablenc_.inverse_transform(maj_vote)
        return maj_vote

    def predict_proba(self, X):
        """ Predict class probabilities for X.

        Parameters
        ----------
        X : {array-like, sparse matrix}, shape = [n_examples, n_features]
            Training vectors, where n_examples is the number of examples and
            n_features is the number of features.

        Returns
        ----------
        avg_proba : array-like, shape = [n_examples, n_classes]
            Weighted average probability for each class per example.

        """
        probas = np.asarray([clf.predict_proba(X)
                             for clf in self.classifiers_])
        avg_proba = np.average(probas, axis=0, weights=self.weights)
        return avg_proba

    def get_params(self, deep=True):
        """ Get classifier parameter names for GridSearch"""
        if not deep:
            return super().get_params(deep=False)
        else:
            out = self.named_classifiers.copy()
            for name, step in self.named_classifiers.items():
                for key, value in step.get_params(deep=True).items():
                    out[f'{name}__{key}'] = value
            return out

from sklearn import datasets
from sklearn.preprocessing import StandardScaler
from sklearn.preprocessing import LabelEncoder
from sklearn.model_selection import train_test_split


iris = datasets.load_iris()
X, y = iris.data[50:, [1, 2]], iris.target[50:]
le = LabelEncoder()
y = le.fit_transform(y)

X_train, X_test, y_train, y_test =\
       train_test_split(X, y,
                        test_size=0.5,
                        random_state=1,
                        stratify=y)

import numpy as np
from sklearn.linear_model import LogisticRegression
from sklearn.tree import DecisionTreeClassifier
from sklearn.neighbors import KNeighborsClassifier
from sklearn.pipeline import Pipeline
from sklearn.model_selection import cross_val_score


clf1 = LogisticRegression(penalty='l2',
                          C=0.001,
                          solver='lbfgs',
                          random_state=1)

clf2 = DecisionTreeClassifier(max_depth=1,
                              criterion='entropy',
                              random_state=0)

clf3 = KNeighborsClassifier(n_neighbors=1,
                            p=2,
                            metric='minkowski')

pipe1 = Pipeline([['sc', StandardScaler()],
                  ['clf', clf1]])
pipe3 = Pipeline([['sc', StandardScaler()],
                  ['clf', clf3]])

clf_labels = ['Logistic regression', 'Decision tree', 'KNN']

print('10-fold cross validation:\n')
for clf, label in zip([pipe1, clf2, pipe3], clf_labels):
    scores = cross_val_score(estimator=clf,
                             X=X_train,
                             y=y_train,
                             cv=10,
                             scoring='roc_auc')
    print(f'ROC AUC: {scores.mean():.2f} '
          f'(+/- {scores.std():.2f}) [{label}]')

# Majority Rule (hard) Voting

mv_clf = MajorityVoteClassifier(classifiers=[pipe1, clf2, pipe3])

clf_labels += ['Majority voting']
all_clf = [pipe1, clf2, pipe3, mv_clf]

for clf, label in zip(all_clf, clf_labels):
    scores = cross_val_score(estimator=clf,
                             X=X_train,
                             y=y_train,
                             cv=10,
                             scoring='roc_auc')
    print(f'ROC AUC: {scores.mean():.2f} '
          f'(+/- {scores.std():.2f}) [{label}]')

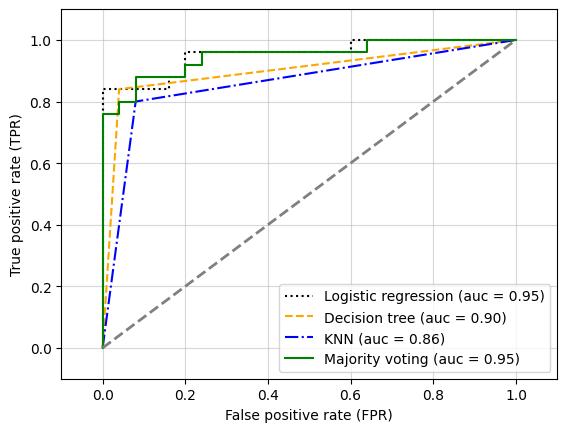

from sklearn.metrics import roc_curve
from sklearn.metrics import auc


colors = ['black', 'orange', 'blue', 'green']
linestyles = [':', '--', '-.', '-']
for clf, label, clr, ls \
        in zip(all_clf,
               clf_labels, colors, linestyles):

    # assuming the label of the positive class is 1
    y_pred = clf.fit(X_train,
                     y_train).predict_proba(X_test)[:, 1]
    fpr, tpr, thresholds = roc_curve(y_true=y_test,
                                     y_score=y_pred)
    roc_auc = auc(x=fpr, y=tpr)
    plt.plot(fpr, tpr,
             color=clr,
             linestyle=ls,
             label=f'{label} (auc = {roc_auc:.2f})')

plt.legend(loc='lower right')
plt.plot([0, 1], [0, 1],
         linestyle='--',
         color='gray',
         linewidth=2)

plt.xlim([-0.1, 1.1])
plt.ylim([-0.1, 1.1])
plt.grid(alpha=0.5)
plt.xlabel('False positive rate (FPR)')
plt.ylabel('True positive rate (TPR)')


#plt.savefig('figures/07_04', dpi=300)
plt.show()

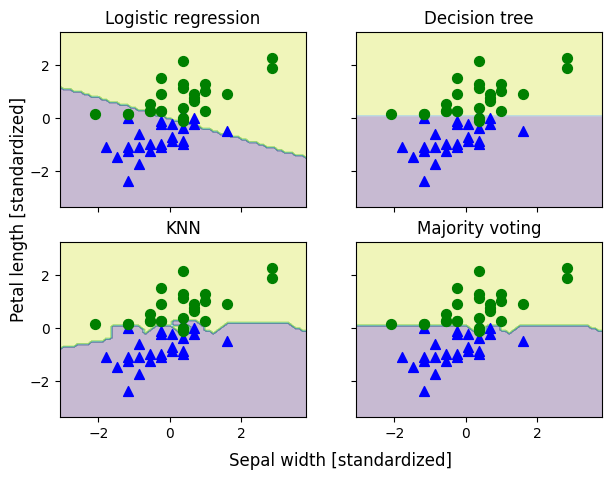

sc = StandardScaler()
X_train_std = sc.fit_transform(X_train)

from itertools import product


all_clf = [pipe1, clf2, pipe3, mv_clf]

x_min = X_train_std[:, 0].min() - 1
x_max = X_train_std[:, 0].max() + 1
y_min = X_train_std[:, 1].min() - 1
y_max = X_train_std[:, 1].max() + 1

xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
                     np.arange(y_min, y_max, 0.1))

f, axarr = plt.subplots(nrows=2, ncols=2,
                        sharex='col',
                        sharey='row',
                        figsize=(7, 5))

for idx, clf, tt in zip(product([0, 1], [0, 1]),
                        all_clf, clf_labels):
    clf.fit(X_train_std, y_train)

    Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    axarr[idx[0], idx[1]].contourf(xx, yy, Z, alpha=0.3)

    axarr[idx[0], idx[1]].scatter(X_train_std[y_train==0, 0],
                                  X_train_std[y_train==0, 1],
                                  c='blue',
                                  marker='^',
                                  s=50)

    axarr[idx[0], idx[1]].scatter(X_train_std[y_train==1, 0],
                                  X_train_std[y_train==1, 1],
                                  c='green',
                                  marker='o',
                                  s=50)

    axarr[idx[0], idx[1]].set_title(tt)

plt.text(-3.5, -5.,
         s='Sepal width [standardized]',
         ha='center', va='center', fontsize=12)
plt.text(-12.5, 4.5,
         s='Petal length [standardized]',
         ha='center', va='center',
         fontsize=12, rotation=90)

#plt.savefig('figures/07_05', dpi=300)
plt.show()

mv_clf.get_params()

from sklearn.model_selection import GridSearchCV


params = {'decisiontreeclassifier__max_depth': [1, 2],
          'pipeline-1__clf__C': [0.001, 0.1, 100.0]}

grid = GridSearchCV(estimator=mv_clf,
                    param_grid=params,
                    cv=10,
                    scoring='roc_auc')
grid.fit(X_train, y_train)

for r, _ in enumerate(grid.cv_results_['mean_test_score']):
    mean_score = grid.cv_results_['mean_test_score'][r]
    std_dev = grid.cv_results_['std_test_score'][r]
    params = grid.cv_results_['params'][r]
    print(f'{mean_score:.3f} +/- {std_dev:.2f} {params}')

print(f'Best parameters: {grid.best_params_}')
print(f'ROC AUC: {grid.best_score_:.2f}')

grid.best_estimator_.classifiers

mv_clf = grid.best_estimator_

mv_clf.set_params(**grid.best_estimator_.get_params())

mv_clf

Image(url=f'{FIGURES_BASE_URL}/07_06.png', width=500)

Image(url=f'{FIGURES_BASE_URL}/07_07.png', width=800)

import pandas as pd

wine_cols = ['Class label', 'Alcohol', 'Malic acid', 'Ash',
             'Alcalinity of ash', 'Magnesium', 'Total phenols',
             'Flavanoids', 'Nonflavanoid phenols', 'Proanthocyanins',
             'Color intensity', 'Hue', 'OD280/OD315 of diluted wines',
             'Proline']

try:
    df_wine = pd.read_csv('https://archive.ics.uci.edu/ml/'
                          'machine-learning-databases/wine/wine.data',
                          header=None)
    df_wine.columns = wine_cols
except Exception as e:
    # The UCI archive occasionally returns 403/connection errors for this legacy path.
    # Fall back to the identical Wine dataset bundled with scikit-learn.
    print(f'UCI download failed ({e}); falling back to sklearn.datasets.load_wine().')
    from sklearn.datasets import load_wine
    wine = load_wine()
    df_wine = pd.DataFrame(wine.data, columns=wine_cols[1:])
    df_wine.insert(0, 'Class label', wine.target + 1)  # match UCI's 1/2/3 class labels

# drop 1 class
df_wine = df_wine[df_wine['Class label'] != 1]

y = df_wine['Class label'].values
X = df_wine[['Alcohol', 'OD280/OD315 of diluted wines']].values

from sklearn.preprocessing import LabelEncoder
from sklearn.model_selection import train_test_split


le = LabelEncoder()
y = le.fit_transform(y)

X_train, X_test, y_train, y_test =\
            train_test_split(X, y,
                             test_size=0.2,
                             random_state=1,
                             stratify=y)

from sklearn.ensemble import BaggingClassifier
from sklearn.tree import DecisionTreeClassifier

tree = DecisionTreeClassifier(criterion='entropy',
                              max_depth=None,
                              random_state=1)

# `base_estimator` was renamed to `estimator` in scikit-learn 1.4+ (and removed thereafter).
bag = BaggingClassifier(estimator=tree,
                        n_estimators=500,
                        max_samples=1.0,
                        max_features=1.0,
                        bootstrap=True,
                        bootstrap_features=False,
                        n_jobs=1,
                        random_state=1)

from sklearn.metrics import accuracy_score


tree = tree.fit(X_train, y_train)
y_train_pred = tree.predict(X_train)
y_test_pred = tree.predict(X_test)

tree_train = accuracy_score(y_train, y_train_pred)
tree_test = accuracy_score(y_test, y_test_pred)
print(f'Decision tree train/test accuracies '
      f'{tree_train:.3f}/{tree_test:.3f}')

bag = bag.fit(X_train, y_train)
y_train_pred = bag.predict(X_train)
y_test_pred = bag.predict(X_test)

bag_train = accuracy_score(y_train, y_train_pred)
bag_test = accuracy_score(y_test, y_test_pred)
print(f'Bagging train/test accuracies '
      f'{bag_train:.3f}/{bag_test:.3f}')

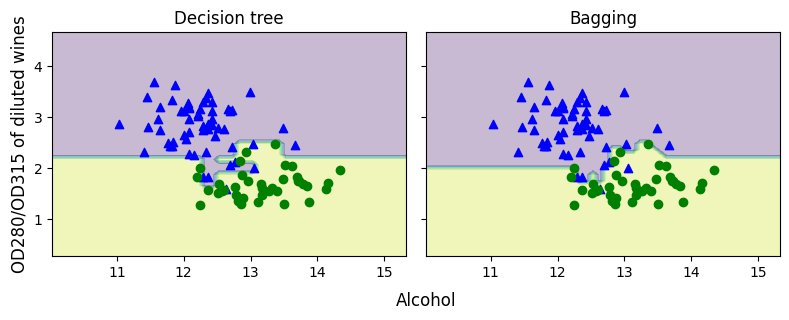

import numpy as np
import matplotlib.pyplot as plt


x_min = X_train[:, 0].min() - 1
x_max = X_train[:, 0].max() + 1
y_min = X_train[:, 1].min() - 1
y_max = X_train[:, 1].max() + 1

xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
                     np.arange(y_min, y_max, 0.1))

f, axarr = plt.subplots(nrows=1, ncols=2,
                        sharex='col',
                        sharey='row',
                        figsize=(8, 3))


for idx, clf, tt in zip([0, 1],
                        [tree, bag],
                        ['Decision tree', 'Bagging']):
    clf.fit(X_train, y_train)

    Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    axarr[idx].contourf(xx, yy, Z, alpha=0.3)
    axarr[idx].scatter(X_train[y_train == 0, 0],
                       X_train[y_train == 0, 1],
                       c='blue', marker='^')

    axarr[idx].scatter(X_train[y_train == 1, 0],
                       X_train[y_train == 1, 1],
                       c='green', marker='o')

    axarr[idx].set_title(tt)

axarr[0].set_ylabel('OD280/OD315 of diluted wines', fontsize=12)

plt.tight_layout()
plt.text(0, -0.2,
         s='Alcohol',
         ha='center',
         va='center',
         fontsize=12,
         transform=axarr[1].transAxes)

#plt.savefig('figures/07_08.png', dpi=300, bbox_inches='tight')
plt.show()

Image(url=f'{FIGURES_BASE_URL}/07_09.png', width=400)

Image(url=f'{FIGURES_BASE_URL}/07_10.png', width=500)

y = np.array([1, 1, 1, -1, -1, -1,  1,  1,  1, -1])
yhat = np.array([1, 1, 1, -1, -1, -1, -1, -1, -1, -1])
correct = (y == yhat)
weights = np.full(10, 0.1)
print(weights)

epsilon = np.mean(~correct)
print(epsilon)

alpha_j = 0.5 * np.log((1-epsilon) / epsilon)
print(alpha_j)

update_if_correct = 0.1 * np.exp(-alpha_j * 1 * 1)
print(update_if_correct)

update_if_wrong_1 = 0.1 * np.exp(-alpha_j * 1 * -1)
print(update_if_wrong_1)

update_if_wrong_2 = 0.1 * np.exp(-alpha_j * -1 * 1)
print(update_if_wrong_2)

weights = np.where(correct == 1, update_if_correct, update_if_wrong_1)
print(weights)

normalized_weights = weights / np.sum(weights)
print(normalized_weights)

from sklearn.ensemble import AdaBoostClassifier


tree = DecisionTreeClassifier(criterion='entropy',
                              max_depth=1,
                              random_state=1)

# `base_estimator` was renamed to `estimator` in scikit-learn 1.4+ (and removed thereafter).
ada = AdaBoostClassifier(estimator=tree,
                         n_estimators=500,
                         learning_rate=0.1,
                         random_state=1)

tree = tree.fit(X_train, y_train)
y_train_pred = tree.predict(X_train)
y_test_pred = tree.predict(X_test)

tree_train = accuracy_score(y_train, y_train_pred)
tree_test = accuracy_score(y_test, y_test_pred)
print(f'Decision tree train/test accuracies '
      f'{tree_train:.3f}/{tree_test:.3f}')

ada = ada.fit(X_train, y_train)
y_train_pred = ada.predict(X_train)
y_test_pred = ada.predict(X_test)

ada_train = accuracy_score(y_train, y_train_pred)
ada_test = accuracy_score(y_test, y_test_pred)
print(f'AdaBoost train/test accuracies '
      f'{ada_train:.3f}/{ada_test:.3f}')

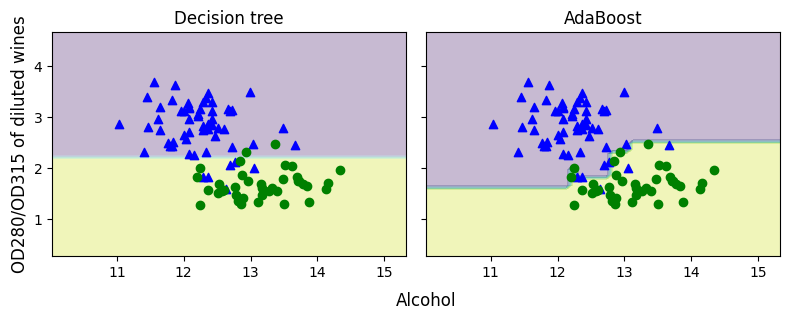

x_min, x_max = X_train[:, 0].min() - 1, X_train[:, 0].max() + 1
y_min, y_max = X_train[:, 1].min() - 1, X_train[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.1),
                     np.arange(y_min, y_max, 0.1))

f, axarr = plt.subplots(1, 2, sharex='col', sharey='row', figsize=(8, 3))


for idx, clf, tt in zip([0, 1],
                        [tree, ada],
                        ['Decision tree', 'AdaBoost']):
    clf.fit(X_train, y_train)

    Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    axarr[idx].contourf(xx, yy, Z, alpha=0.3)
    axarr[idx].scatter(X_train[y_train == 0, 0],
                       X_train[y_train == 0, 1],
                       c='blue', marker='^')
    axarr[idx].scatter(X_train[y_train == 1, 0],
                       X_train[y_train == 1, 1],
                       c='green', marker='o')
    axarr[idx].set_title(tt)

axarr[0].set_ylabel('OD280/OD315 of diluted wines', fontsize=12)

plt.tight_layout()
plt.text(0, -0.2,
         s='Alcohol',
         ha='center',
         va='center',
         fontsize=12,
         transform=axarr[1].transAxes)

# plt.savefig('figures/07_11.png', dpi=300, bbox_inches='tight')
plt.show()

Image(url=f'{FIGURES_BASE_URL}/07_12.png', width=300)

Image(url=f'{FIGURES_BASE_URL}/07_13.png', width=750)

Image(url=f'{FIGURES_BASE_URL}/07_14.png', width=500)

Image(url=f'{FIGURES_BASE_URL}/07_15.png', width=500)

Image(url=f'{FIGURES_BASE_URL}/07_16.png', width=800)

import xgboost as xgb

xgb.__version__

# `use_label_encoder` was removed from XGBClassifier in modern xgboost releases.
model = xgb.XGBClassifier(n_estimators=1000, learning_rate=0.01, max_depth=4, random_state=1)

gbm = model.fit(X_train, y_train)

y_train_pred = gbm.predict(X_train)
y_test_pred = gbm.predict(X_test)

gbm_train = accuracy_score(y_train, y_train_pred)
gbm_test = accuracy_score(y_test, y_test_pred)
print(f'XGboost train/test accuracies '
      f'{gbm_train:.3f}/{gbm_test:.3f}')

# This cell converts the notebook to a plain .py script using a helper script
# from the book's companion repo. It isn't needed to run the notebook itself,
# and the helper script isn't present on Colab, so it's skipped here.
# ! python ../.convert_notebook_to_script.py --input ch07.ipynb --output ch07.py
